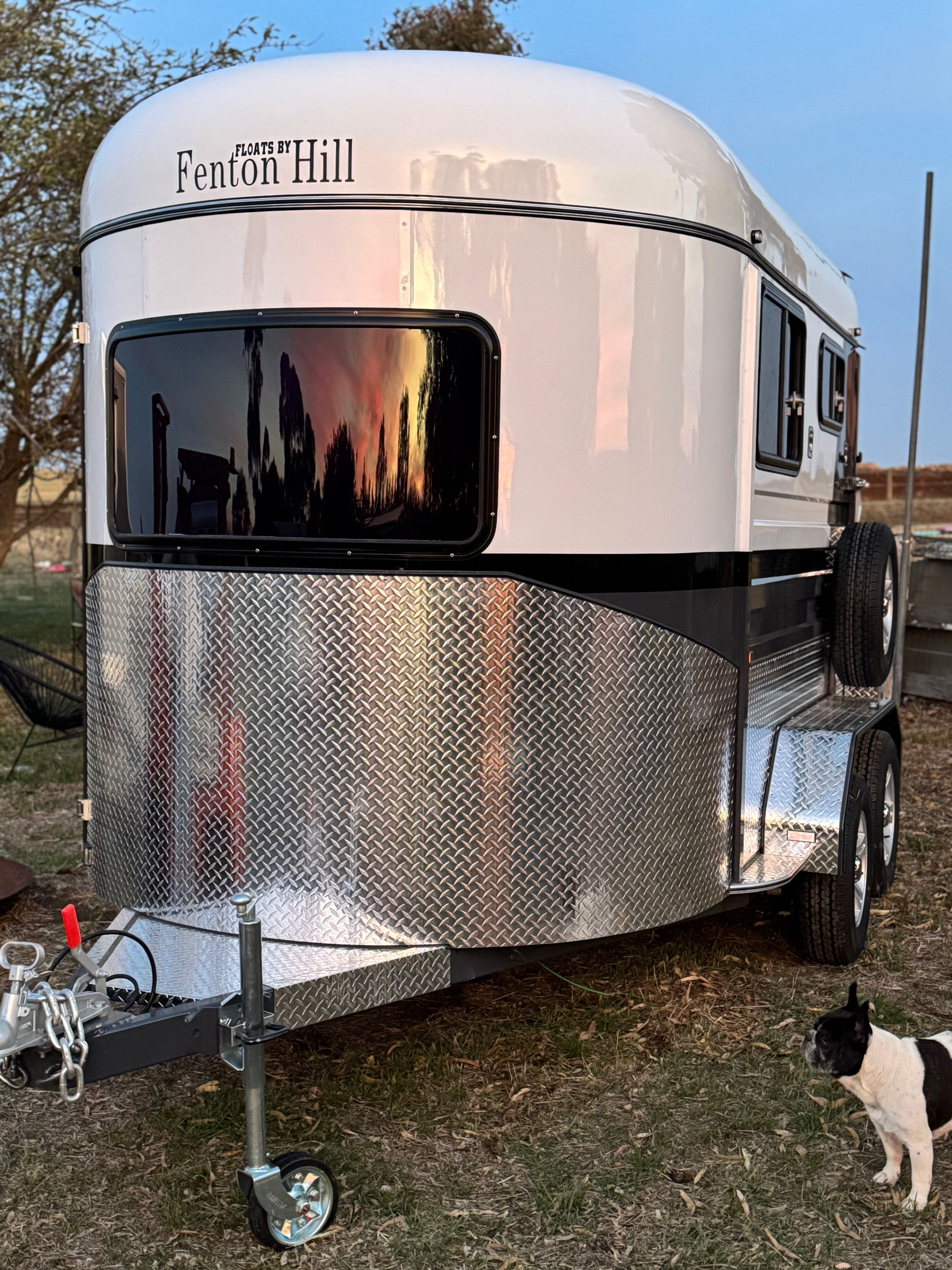

2 Horse Angle Load Float – Under $20k
Strong, safe, and affordable. Available in Round or Square Nose designs.

Pricing & Sizes
3.3m internal length (suits up to 16hh) – $18,950
3.6m internal length (suits up to 17.2hh) – $19,950

Optional Extras
Roof lining – $750
Awning – $1,200
Front bench – $750
Custom paint (other than white/charcoal stripe) – $500

Standard Features
Aluminium floor – lightweight & durable
Breakaway safety system

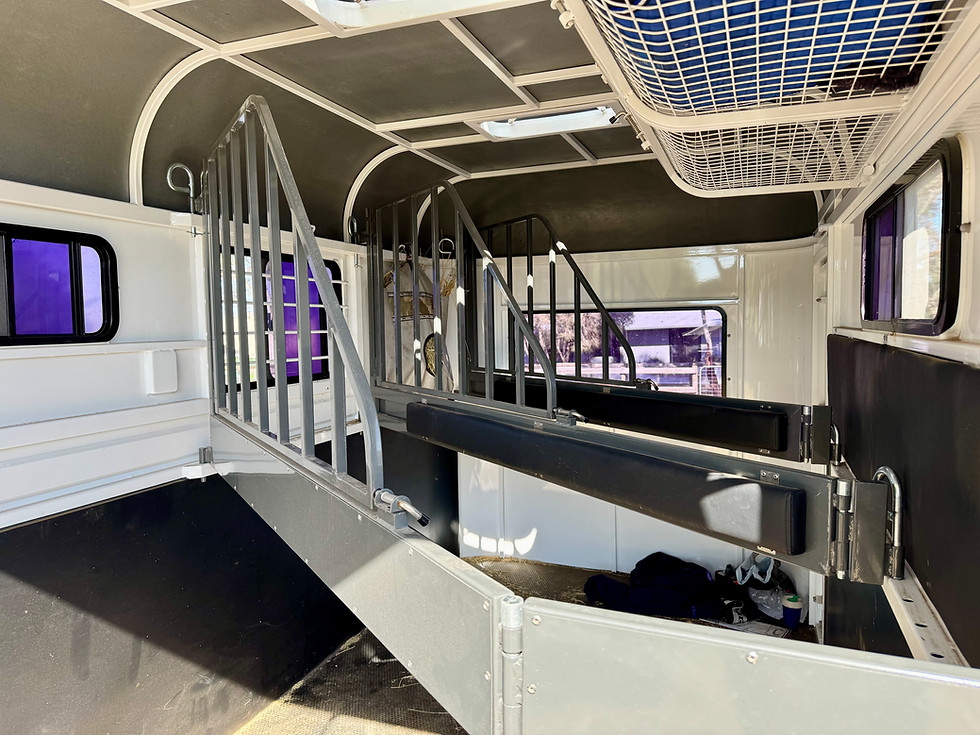

Swing-out tack box with adjustable saddle brackets
Enclosed removable rug rack
Roof lining & pop-up roof vents for ventilation
Sliding windows with flyscreens
Lockable doors & rear ramp

Specifications
TARE weight: 1300kg (depending on options)
GVM: 2800kg
Chassis & frame: Hot-dip galvanized RHS
Roof: Moulded FRP
Suspension: Roll rocker tandem springs
Brakes: 4-wheel electric brakes
Wheels: 14” alloy rims with 185R14C tyres
Spare wheel included

Dimensions (3.3m model)
Overall: 4110mm (L) x 2280mm (W) x 2590mm (H)
Body: 3260mm (L) x 1980mm (W) x 2230mm (H)
Internal: 3235mm (L) x 1930mm (W) x 2155mm (H)
